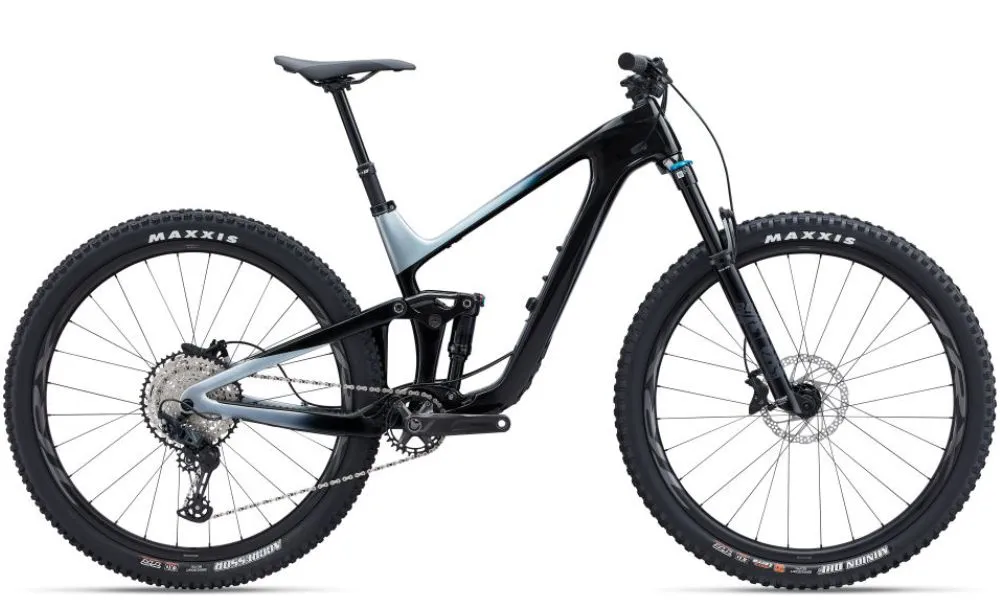

Giant 2024 Trance Advanced 29 2
BLITZ SINGLETRACK TRAILS WITH SPEED AND CONTROL. THIS LIVELY 29ER IS BUILT ON A FULL-COMPOSITE FRAMESET WITH ADJUSTABLE GEOMETRY, SO YOU CAN DIAL IT IN AND RIDE JUST THE WAY YOU WANT.
Adjustable frame geometry
Flip chip feature lets you adjust the head tube and seat tube angles, as well as the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style.
29er confidence and control
Larger 29-inch diameter wheels optimized to roll over rough terrain with balance and stability, giving you the momentum to tackle technical climbs and the confidence to fly on fast, rugged singletrack descents.
Progressive trail design
Lightweight Advanced-grade composite frameset features a longer reach and steeper seat tube angle for aggressive trail riding and improved climbing capabilities. Maestro rear suspension features 120mm of travel paired with a 130mm fork up front.
Specifications
Giant 2024 Trance Advanced 29 2
Frame
Colour: Carbon/SupernovaFrame: Advanced-Grade Composite front and rear triangles, 120mm Maestro suspension, flip chip, UDH hanger, 12x148mm thru-axle, 55mm Chainline
Fork: Fox 34 Float Rhythm, 130mm, GRIP damper, Boost 15x110 Kabolt, 44mm offset, custom tuned for Giant
Shock: Fox Float DPS Performance, custom tuned for Giant
Drivetrain
Crankset: Shimano MT512-1, 30t, 55mm chainline M:170mm, L:170mm, XL:170mmPedals:
Chain: KMC X-12
Bottom Bracket: Shimano, press fit
Rear Derailleur: Shimano SLX RD-M7100 Shadow
Front Derailleur: NA
Derailleur Shifter: Shimano SLX SL-M7100, 1x12
Freewheel/Cassette: Shimano SLX, 10x51
Wheels
Tyres: [F] Maxxis Minion DHF 29x2.5 WT, 3C MaxxTerra, EXO, TR [R] Maxxis Aggressor 29x2.5, EXO, TR, tubelessWheels/Rims: Giant TRX 2 29 Carbon WheelSystem, 30mm inner width
Hubs: [F] : Giant MTB alloy, 6-bolt [R] Giant MTB alloy, 3-pawl driver, 6-bolt
Braking System
Brakes: Shimano Deore BR-M6120, hydraulic, Shimano RT-56 rotors [F]180mm, [R]180mmBrake Levers: Shimano Deore BL-M6100
Other
Handlebar: Giant Contact TR35, alloy, 35mmStem: Giant Contact SL 35 M:40mm, L:50mm, XL:50mm
Saddle: Giant Romero SL
Seat Post: TranzX travel-adjustable dropper, remote M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 525mm XL: 170-200mm travel / 30.9 x 525mm
Geometry
Giant 2024 Trance Advanced 29 2
-
- S
- 163 cm 172 cm
-
- M
- 171 cm 180 cm
-
- L
- 179 cm 188 cm
-
- XL
- 187 cm 198 cm
| S | M | L | XL | ||
| A | SEAT TUBE LENGTH (mm) | 420 | 430 | 465 | 496 |
| B | SEAT TUBE ANGLE | 77.2° | 76.3° | 76.3° | 76.3° |
| C | TOP TUBE LENGTH (mm) | 561 | 599 | 626 | 663 |
| D | HEAD TUBE LENGTH (mm) | 100 | 110 | 120 | 130 |
| E | HEAD TUBE ANGLE | 65.4° | 65.5° | 65.5° | 65.5° |
| F | FORK RAKE (mm) | 44 | 44 | 44 | 44 |
| G | TRAIL (mm) | 126.0 | 126.0 | 126.0 | 126.0 |
| H | WHEELBASE (mm) | 1166 | 1195 | 1124 | 1263 |
| I | CHAIN STAY LENGTH (mm) | 439 | 439 | 439 | 439 |
| J | BOTTOM BRACKET DROP (mm) | 45 | 45 | 45 | 45 |
| K | STACK (mm) | 610 | 619 | 628 | 637 |
| L | REACH (mm) | 422 | 447 | 472 | 507 |
| M | STAND OVER HEIGHT (mm) | 729 | 723 | 746 | 751 |
| N | HANDLEBAR WIDTH (mm) | 780 | 780 | 780 | 780 |
| O | STEM LENGTH (mm) | 40 | 40 | 50 | 50 |
| P | CRANK LENGTH (mm) | 165 | 170 | 170 | 170 |
| Q | WHEEL SIZE | [F] 29" [R] 29" | [F] 29" [R] 29" | [F] 29" [R] 29" | [F] 29" [R] 29" |
